Aṣeṣe No.: LP156WFC-SPU1

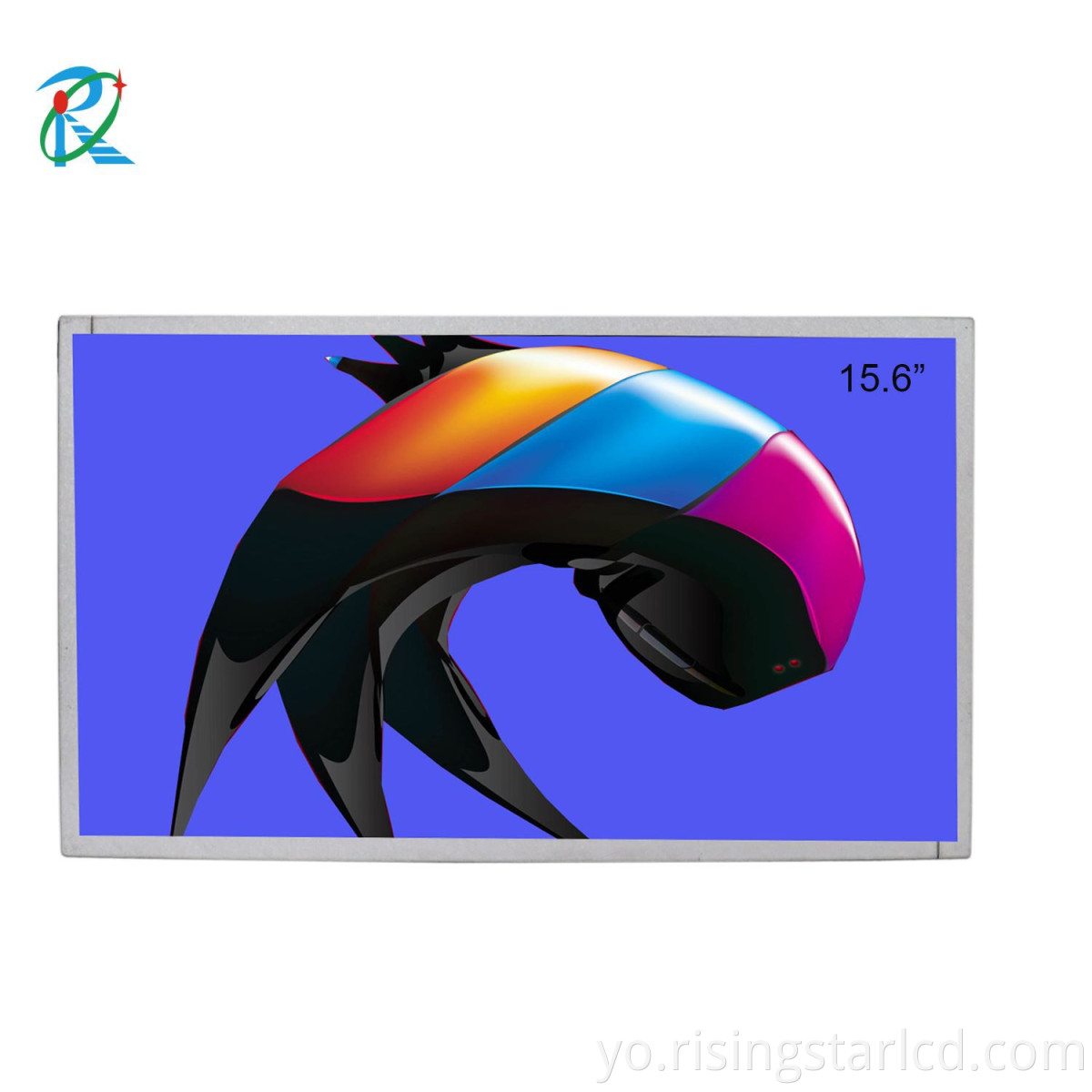

15.6 "Lg Ifihan LP156worfc-Spi1 Imọlẹ oorun ti oorun ti a ka TCD Module.
Ami kanna ati awoṣe iwọn: LP156W FU2.
| brand | LG Display (LG Display) | Model name | LP156WFC-SPU1 (LGD0630) |
| size | 15.6" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×1080 [FHD] 141PPI | Pixel configuration | RGB vertical bar |
| Display size | 344.16 × 193.59 mm (H×V) | Surface treatment | Mirror (Haze 0%) |
| Brightness(cd/m²) | 1000-1500 cd/m² (Typ.) | contrast | 1400:1 (Typ.) [transmission] |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Appearance of size | 350.66×205.84×4.25(H×V×D)mm |
| Signal system | 30 pins eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , termina |
|
|
| Maximum rated | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
|
|
Awọn afi Gbona: 15.6 "LG LG1566WF-SPUST Module module, China, Ikọkọ Ipolongo, ita gbangba Nuse, TF specital nronu , LCD Speni, module LCD, ifihan didan giga.
12.3 "LG la 8WWF1-Sr01 TFT LCD module
13.3 "LG LP13WH3WF9-SPF1 TOFD module LCD
